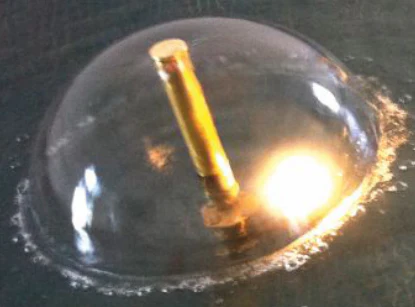

Bell FN-2300 Series Water Film Nozzles
Bell FN-2300 Series Water Film Nozzles
Design/Application Data:
A Clear display of water in the shape of a bell. Minimum sound or splash. For silent wind-free locations in small and medium sized displays. Ideal in grouping of various heights. No constant water level required.
Specification Data:
Brass with adjustable top.
Note: (for Optimum Effects)
- Requires non-turbulent water supply.
- Requires fine screening at pump.
- Ideal for indoor fountain use.
OPERATING DATA:
Sound level : Good
Visibility : Good
Splash/Mist : Low
Wind Stability : Poor
Aeration Quality : Poor
|
Model No. |
BSP |
Dimension |
|
Spray diameter (cm) |
||||
|
A |
B |
15 cm |
30 cm |
45 cm |
60 cm |
|||
|
FN-2301 |
½” |
179 |
56 |
LPM |
16 |
24 |
||
|
Head in Mtr |
0.70 |
1.0 |
||||||
|
FN-2302 |
1” |
360 |
56 |
LPM |
16 |
24 |
30 |
34 |
|
Head in Mtr |
0.70 |
1.0 |
1.30 |
1.60 |
||||
Original: $101.17
-65%$101.17
$35.41
Description
Bell FN-2300 Series Water Film Nozzles
Design/Application Data:
A Clear display of water in the shape of a bell. Minimum sound or splash. For silent wind-free locations in small and medium sized displays. Ideal in grouping of various heights. No constant water level required.
Specification Data:
Brass with adjustable top.
Note: (for Optimum Effects)
- Requires non-turbulent water supply.
- Requires fine screening at pump.
- Ideal for indoor fountain use.
OPERATING DATA:
Sound level : Good
Visibility : Good
Splash/Mist : Low
Wind Stability : Poor
Aeration Quality : Poor
|
Model No. |
BSP |
Dimension |
|
Spray diameter (cm) |
||||
|
A |
B |
15 cm |
30 cm |
45 cm |
60 cm |
|||
|
FN-2301 |
½” |
179 |
56 |
LPM |
16 |
24 |
||
|
Head in Mtr |
0.70 |
1.0 |
||||||
|
FN-2302 |
1” |
360 |
56 |
LPM |
16 |
24 |
30 |
34 |
|
Head in Mtr |
0.70 |
1.0 |
1.30 |
1.60 |
||||
