Oase Bottom Drain DB 100

Oase Bottom Drain DB 100

The Oase BD 100 bottom drain is designed to be installed at the base or lowest part of the pond, where fish waste is sucked through towards a settling chamber or drum filter before being pumped to the filter.

• can be installed with or connected to pond liner, fiberglass and waterproofing
• For secure connection of pond and ProfiClear modules
• is flanged for easy bonding to liner
• perfect for koi ponds and swim ponds

TECHNICAL DATA

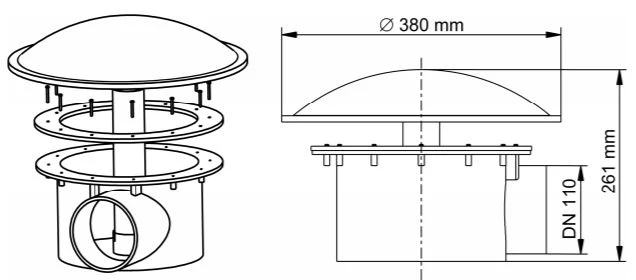

Dimensions       (L x W x H) 380mm x 380mm x 261mm

Connection        DN 100 (inner diameter 110)

Net weight         kg         1.96

Guarantee         Years    3

Diameter            mm       380

Length                mm       380

• PDF installation guide: https://www.oase.com/_Resources/Shared/DOK/PRD/GA/all/original/DOK_PRD_GA_27497-GA-Bodenablauf-BD-100-01.pdf
