Calyx FN-2303 Water Film Nozzle

Calyx FN-2303 Water Film Nozzle

Design/Application Data:

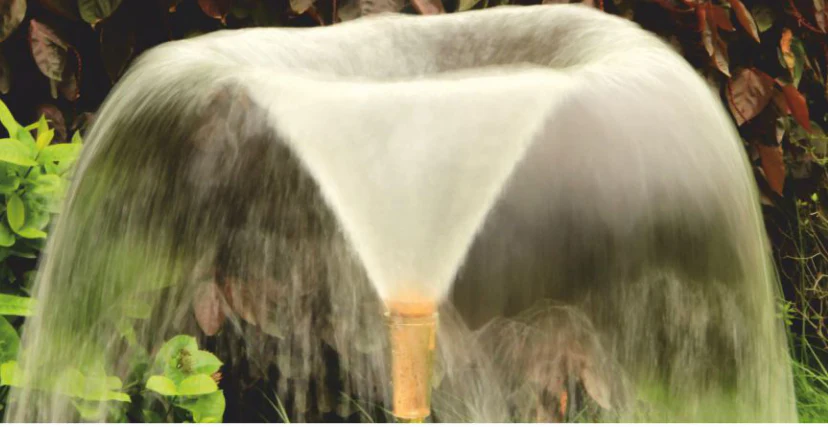

A Clear pulsating sheet of water in a mushroom form when operated in a full sheet pattern there is very little    splash, ideal for both silent and windy locations. Preferred for floating or lake fountain.

 Specification Data:

Cast bronze and brass construction with adjustable top cone.

• Bottom of nozzle must be installed at water level.
• Water supply must have moderate screening.

 Operating Data:

• Noise                      : Good
• Visibility                  : Excellent
• Splash/Mist             : Excellent
• Wind Stability         : Excellent
• Aeration Quality     : Moderate

Model No.	BSP Con.	Dimension			Spray height in cm
		A	B		15 cm	30 cm	45 cm
FN-2303	½”	162 mm	45 mm	LPM	16	22	26
				Head in Mtr	0.30	0.45	0.75
				Spread in CM	10	20	30
